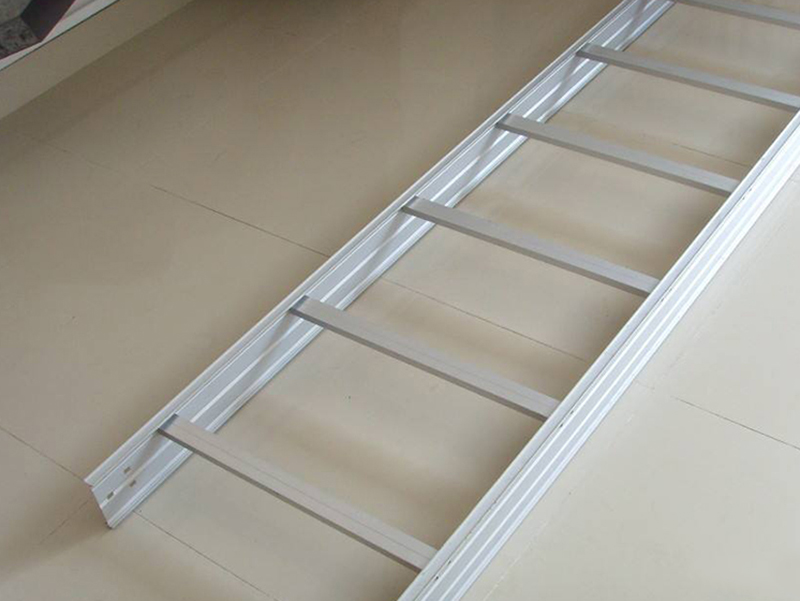

在電氣工程領域，橋架如同建筑的“血管”，承載著電力與信號的生命線。然而，劣質橋架就像潛伏的血栓，輕則引發信號干擾，重則導致火災隱患。面對五花八門的檢測報告，如何練就“火眼金睛”？本文教你用5分鐘解鎖專業視角，讓數據成為非常可靠的“質檢員”。

　　In the field of electrical engineering, cable trays are like the "blood vessels" of buildings, carrying the lifeline of electricity and signals. However, inferior cable trays are like hidden blood clots, which can cause signal interference at the slightest and fire hazards at the most. How to develop a keen eye when faced with a variety of testing reports? This article teaches you to unlock professional perspectives in 5 minutes, making data the most reliable "quality inspector".

　　一、材料成分：揭開“李鬼”的偽裝

　　1、 Material composition: Unveil the disguise of 'Li Gui'

　　優良橋架的基材是Q235B冷軋鋼板，其含碳量、錳含量等指標直接影響強度。檢測報告中，需核心關注：

　　The substrate of high-quality bridge frames is Q235B cold-rolled steel plate, and its carbon content, manganese content, and other indicators directly affect its strength. In the testing report, special attention should be paid to:

　　化學成分表：碳含量應在0.12%-0.20%之間，錳含量≤1.40%。若發現硫、磷等雜質元素超標（S≤0.045%，P≤0.045%），則鋼材脆性風險激增。

　　Chemical composition table: The carbon content should be between 0.12% and 0.20%, and the manganese content should be ≤ 1.40%. If impurities such as sulfur and phosphorus are found to exceed the standard (S ≤ 0.045%, P ≤ 0.045%), the risk of steel brittleness will increase significantly.

　　金相組織：合格產品應呈現均勻的鐵素體+珠光體結構，若出現魏氏體等異常組織，暗示熱處理工藝失控。

　　Metallographic structure: Qualified products should present a uniform ferrite+pearlite structure. If abnormal structures such as martensite appear, it indicates that the heat treatment process is out of control.

　　案例警示：某項目使用橋架在冬季頻繁開裂，檢測發現鋼材錳含量僅0.3%，遠低于國標要求，導致低溫韌性不足。

　　Case warning: A project used bridge frames that frequently cracked in winter. Testing found that the manganese content in the steel was only 0.3%, far below the national standard requirements, resulting in insufficient low-temperature toughness.

　　二、機械性能：數據背后的“力學密碼”

　　2、 Mechanical Performance: The 'Mechanical Password' Behind Data

　　橋架需經受電纜重力、安裝應力等考驗，三項核心指標不容有失：

　　The cable tray must withstand tests such as cable gravity and installation stress, and three core indicators must not be compromised:

　　屈服強度：≥235MPa是底線，低于此值如同用“橡皮”做支架。

　　Yield strength: ≥ 235MPa is the bottom line, and below this value, it is like using "rubber" as a support.

　　抗拉強度：應在370-500MPa之間，過高可能脆化，過低則易變形。

　　Tensile strength: It should be between 370-500MPa. If it is too high, it may become brittle, while if it is too low, it is prone to deformation.

　　延伸率：≥26%確保韌性，數值過低如同“玻璃棒”，稍有沖擊即斷裂。

　　Elongation rate: ≥ 26% ensures toughness, and if the value is too low, it is like a "glass rod" that will fracture with a slight impact.

　　快速判斷法：將檢測值與國標GB/T 23639-2017對比，偏差超過5%需警惕。

　　Quick judgment method: Compare the detection value with the national standard GB/T 23639-2017, and be alert if the deviation exceeds 5%.

　　三、防腐性能：穿透“鍍層”看本質

　　3、 Anti corrosion performance: penetrate the "coating" to see the essence

　　防腐處理是橋架的“防護服”，檢測報告應包含：

　　Anti corrosion treatment is the "protective clothing" of the bridge frame, and the inspection report should include:

　　鍍層厚度：熱鍍鋅橋架鋅層應≥65μm，電鍍鋅≥12μm。用“鋅層測厚儀”可現場驗證，厚度不足如同給鋼材穿“透視裝”。

　　Coating thickness: The zinc layer of hot-dip galvanized bridge should be ≥ 65 μ m, and that of electroplated galvanized should be ≥ 12 μ m. The "zinc layer thickness gauge" can be used for on-site verification, and insufficient thickness is like wearing a "see through installation" on steel.

　　鹽霧試驗：48小時無紅銹是基礎門檻，優良產品可達72小時以上。若報告標注“24小時輕微銹蝕”，則耐腐蝕性堪憂。

　　Salt spray test: 48 hours without red rust is the basic threshold, and high-quality products can reach more than 72 hours. If the report indicates' slight corrosion within 24 hours', the corrosion resistance is worrying.

　　附著力測試：劃格法應達到0級（完全無脫落），膠帶撕拉后掉漆的橋架，防腐層如同“墻皮”。

　　Adhesion test: The scratch method should reach level 0 (completely without peeling off), and the anti-corrosion layer of the bridge with paint peeling off after the tape is torn off should be like "wall skin".

　　四、尺寸精度：毫米級的“安全冗余”

　　4、 Dimensional accuracy: millimeter level 'safety redundancy'

　　橋架的寬度、高度、側板厚度等尺寸偏差，直接影響承載能力和安裝適配性：

　　The dimensional deviations of the width, height, and side plate thickness of the bridge directly affect the bearing capacity and installation adaptability:

　　寬度偏差：±1.0mm是合格線，超標可能導致電纜填充率失控。

　　Width deviation: ± 1.0mm is a qualified line, exceeding the standard may lead to uncontrolled cable filling rate.

　　側板厚度：實測值不應低于標稱值的90%，例如標稱2.0mm的橋架，實測＜1.8mm即為偷工減料。

　　Side panel thickness: The measured value should not be less than 90% of the nominal value. For example, for a bridge with a nominal thickness of 2.0mm, if the measured thickness is less than 1.8mm, it is considered cutting corners.

　　蓋板間隙：≤1.5mm確保防護等級，過大間隙如同給灰塵留“后門”。

　　Cover gap: ≤ 1.5mm to ensure protection level, excessive gap is like leaving a "back door" for dust.

　　五、報告真?zhèn)危杭?xì)節處的“防偽標記”

　　5、 Report Authenticity: "Anti Counterfeit Marks" in Details

　　檢測機構資質：CMA、CNAS認證是基本門檻，可在官方網站查詢機構編號。

　　Qualification of testing institutions: CMA and CNAS certification are the basic requirements, and the institution number can be queried on the official website.

　　檢測日期：關注報告是否在有效期內（通常1年），過期報告如同“過期藥品”。

　　Testing date: Pay attention to whether the report is within its validity period (usually 1 year), expired reports are like "expired drugs".

　　原始記錄：合格報告應包含設備型號、環境溫濕度等細節，缺失項可能暗示數據造假。

　　Original records: The qualified report should include details such as equipment model, environmental temperature and humidity. Missing items may imply data falsification.

　　六、實戰技巧：5分鐘速判法

　　6、 Practical skills: 5-minute quick judgment method

　　三秒掃標題：確認檢測對象與樣品型號一致，避免“張冠李戴”。

　　Scan the title in three seconds: Confirm that the test object is consistent with the sample model and avoid making false claims.

　　十秒查關鍵：直奔材料成分、機械性能、防腐性能三大核心板塊。

　　Ten second key check: Go straight to the three core areas of material composition, mechanical properties, and anti-corrosion performance.

　　二十秒比國標：用手機快速查詢對應條款，數值偏差超5%需警惕。

　　20 seconds better than the national standard: Quickly check the corresponding terms with a mobile phone, and be alert if the numerical deviation exceeds 5%.

　　十秒驗真?zhèn)危汉藢z測機構資質和報告有效期。

　　Ten second authenticity check: Verify the qualifications of the testing institution and the validity period of the report.

　　非常后十秒：瀏覽結論欄，關注“是否符合標準要求”的明確表述。

　　Last ten seconds: Browse the conclusion bar and pay attention to the clear statement of whether it meets the standard requirements.

　　檢測報告不是天書，而是劣質橋架的“照妖鏡”。掌握材料、機械、防腐、尺寸四大維度，結合快速驗證技巧，即使非專業人士也能在5分鐘內識破質量陷阱。記住：真正的優良橋架，數據會說話，而你要做的，就是聽懂這些“數字語言”。

　　The inspection report is not a heavenly book, but a "magic mirror" of inferior bridge frames. Mastering the four dimensions of materials, machinery, corrosion prevention, and size, combined with rapid verification techniques, even non professionals can identify quality traps within 5 minutes. Remember: a truly high-quality bridge, data speaks, and all you need to do is understand these 'digital languages'.
