電纜橋架已成為我們生活中常見的建筑材料，為響應環保政策，廠家現已開發出耐火電纜橋架、玻璃鋼耐火電纜橋架等新型優良產品。那么你知道耐火電纜橋架的主要組成部分及防火標準是什么嗎？

Cable tray has become a common building material in our life. In response to the national environmental protection policy, the manufacturer has developed new and excellent products such as fire-resistant cable tray and FRP fire-resistant cable tray. Do you know the main components and fire prevention standards of fire-resistant cable tray?

耐火電纜橋架的主要組成部分有哪些？

What are the main components of fire-resistant cable tray?

的山東電纜橋架廠家生產的產品的主要組成部分有：

The main components of products produced by professional Shandong cable tray manufacturers are:

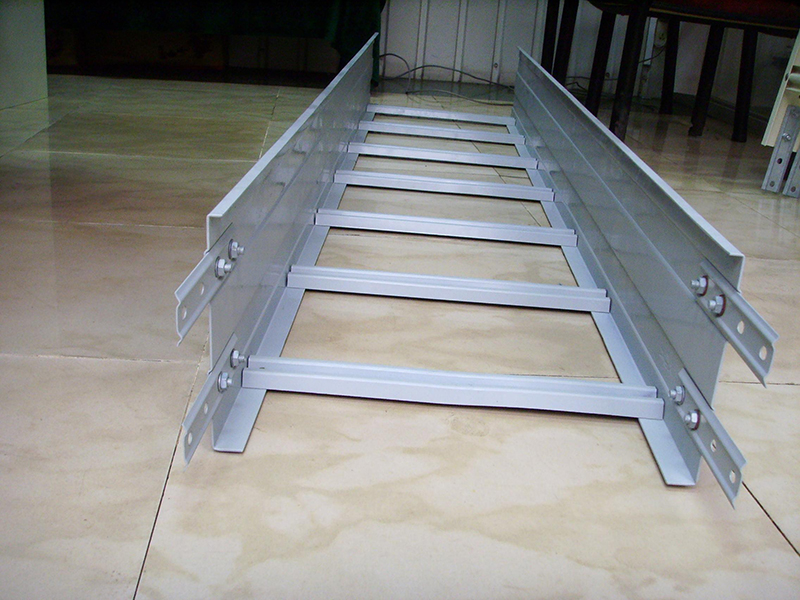

1、梯形橋架，是由兩個縱向邊和幾個橫檔組成的梯形構件。2、打孔托盤由帶孔和邊的底板組成，或將整塊鋁合金板沖壓彎曲形成底部帶孔的凹槽部分。3、無孔托盤由底板和側面組成，或由整塊鋁合金板折彎而成的實底槽形部分。4、LQJ系列鋁合金防腐橋架等。

1. Trapezoidal bridge is a trapezoidal component composed of two longitudinal edges and several rungs. 2. The perforated tray is composed of a bottom plate with holes and edges, or the whole aluminum alloy plate is punched and bent to form a groove part with holes at the bottom. 3. The non perforated tray is composed of a bottom plate and sides, or a solid bottom groove shaped part formed by bending a whole aluminum alloy plate. 4. Lqj series aluminum alloy anti-corrosion bridge, etc.

立柱是支撐耐火電纜橋架的主要部件。橋梁的載荷通過支撐臂傳遞到立柱，因此立柱和支撐臂是索橋安裝的兩個主要組成部分。玻璃鋼防火電纜橋架的主要組成部分與普通防火電纜橋架相似，但材質不同。

The column is the main component supporting the fire-resistant cable tray. The load of the bridge is transmitted to the column through the support arm, so the column and the support arm are the two main components of the cable bridge installation. The main components of FRP fire-proof cable tray are similar to ordinary fire-proof cable tray, but the materials are different.

耐火電纜橋架的防火標準

Fire protection standard for fire-resistant cable tray

1、耐火電纜橋架標準為：寬度300mm以內，厚度1.2mm，壁厚300mm-1000mm，壁厚2mm，1000mm以上壁厚2.5-3mm；

1. The national standard for fire-resistant cable tray is: width within 300mm, thickness 1.2mm, wall thickness 300mm-1000mm, wall thickness 2mm, wall thickness 2.5-3mm above 1000mm;

2、一般防火涂料的厚度應大于1mm，耐火時限應大于30分鐘；

2. Generally, the thickness of fire-proof coating should be greater than 1mm, and the fire resistance time limit should be greater than 30 minutes;

3、在150度高溫沖擊下，-30度低溫下，電線不會開裂；

3. Under the impact of 150 ℃ high temperature and -30 ℃ low temperature, the wire will not crack;

4、規定需要防火的斷面建議采用鋼材或不燃阻燃材料；

4. Steel or non combustible flame retardant materials must be used for sections requiring fire prevention according to national regulations;

5、防火電纜橋架電鍍大于12μm，噴塑大于50μm，熱浸鍍大于65μm，防火大于500μm；

5. The plating of fire-proof cable tray is greater than 12 μ m. Spray more than 50 μ m. Hot dip greater than 65 μ m. Fire protection greater than 500 μ m；

6、外觀建議有認證標志、生產廠家、線徑等；

6. The appearance must have certification mark, manufacturer, wire diameter, etc;

7、選用防火材料的主要參數為：外觀潔白、稠液均勻、無結塊；表干時間為2小時；粘合強度為0.78Mpa；不脫落、耐彎曲、耐酸堿；

7. The main parameters of fire-proof materials are: white appearance, uniform thick liquid, no caking; The surface drying time is 2 hours; The bonding strength is 0.78mpa; No falling off, bending resistance, acid and alkali resistance;

8、耐火電纜橋架經加工成型后，不應有彎曲、彎曲、裂紋、邊緣等缺陷；

8. The fire-resistant cable tray shall be free from bending, bending, cracks, edges and other defects after being processed and formed;

以上就是防火電纜橋架的防火標準，希望對您選購時有所幫助，更多相關信息就來關注我們網站http://www.ymmgjx.net吧！

The above is the fire protection standard of fire-proof cable tray. I hope it will be helpful for you when purchasing. For more relevant information, please pay attention to our website http://www.ymmgjx.net Come on!
